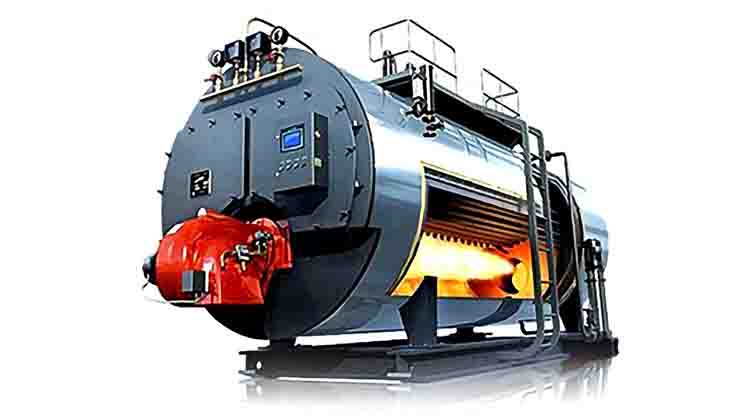

Model: WNS Series Industrial Steam Boilers
Steam Capacity: 0.5T/H-20T /H
Pressure: 0.4Mpa ~ 2.5Mpa (Customizable)
Fuel: Natural Gas, LPG, LNG, CNG, Biogas, City Gas, Diesel, Heavy Oil, Oil and Gas
WhatsApp: +86-17772877223
E-mail: info@yuji-boiler.com
Product Introduction
Oil/Gas Steam Boiler has stainless steel water pump with high efficiency and low power consumption. It calculates the number of heating tubes, thus increasing the heating rate. The safety valve applied is a safety device that can prevent the equipment from bursting due to pressure rise or exceeding the limit. This boiler can be a good substitute for traditional boilers, because it is easy to operate, user-friendly setting, energy saving, and can avoid the problem of low energy utilization. Also, we can provide you friendly price, on-time delivery and mature after-sales service.
Applications
Oil/Gas Steam Boiler has a wide range of uses and can be used in the production of processed foods, such as high-temperature sterilization of edible fungi, soy products, dairy products, etc., and can also be used for heating, greenhouse vegetable planting industry, breeding industry, indoor heating, etc. It has high efficiency, compact structure, easy installation, simple operation, and good adaptation.
Features
This Oil/Gas Steam Boiler can be used in places where steam is used as a heat source, with solid materials, leading technology and reliable performance. Its multi-layer anti-corrosion and anti-rust design makes the machine sustain longer and more durable. It has clear lines, neat and reasonable wiring, making sure easy maintenance. It has good practicability, high efficiency, energy saving, safety and reliability, so you can rest assure to purchase. It can be used in textile industry, food machinery industry, biochemical industry, packaging machinery industry, etc.
Product Details
Product Specification
|
Model |
Rated evaporation capacity (kg/h) |
Rated steam Pressure (Mpa) |
Steam temperature（℃）
|
Thermal efficiency (％) |
Fuel consumptuon |
Dimension (m) |
Weight (kg) |
|
| Oil(kg/h) | Gas(Nm³/h) | |||||||
|
WNS1-0.7/1.0-Y(Q) |
1 |
0.7/1.0 |
194 |
≥98.36 |
61 |
73 |
3.2×1.9×2.2 |
4.9 |
|
WNS2-1.0/1.25-Y(Q) |
2 |
1.0/1.25 |
194 |
≥98.36 |
121 |
145 |
4.2×2.3×2.5 |
8 |
|
WNS3-1.0/1.25-Y(Q) |
3 |
1.0/1.25 |
194 |
≥98.36 |
182 |
217 |
4.5×2.1×2.4 |
9 |
|
WNS4-1.0/1.25-Y(Q) |
4 |
1.0/1.25 |
194 |
≥98.36 |
243 |
289 |
5.0×2.3×2.6 |
11 |
|
WNS6-1.25/1.6-Y(Q) |
6 |
1.25/1.6 |
194 |
≥98.36 |
367 |
435 |
5.4×2.4×2.7 |
18.6 |
|
WNS10-1.25/1.6-Y(Q) |
10 |
1.25/1.6 |
194 |
≥98.36 |
601 |
735 |
6.3×2.7×3.2 |
20.5 |
|
WNS15-1.25/1.6-Y(Q) |
15 |
1.25/1.6 |
194 |
≥98.36 |
906 |
1101 |
8.9×3.4×3.6 |
42 |
|
WNS20-1.25/1.6-Y(Q) |
20 |
1.25/1.6 |
194 |
≥98.36 |
1211 |
1467 |
7.8×3.6×4.0 |
52 |
Product 360° display picture
Our Advantages
1. High efficiency
(1)Oil Fired Steam Boiler adopts Large-diameter corrugated furnace design ,conducive to full combustion of fuel
(2)Three-pass thread corrugated smoke pipe structure, high heat transfer efficiency
(3)The fin-type energy saver ,improves the thermal efficiency up to 98%
(4)Specially Selected high temperature resistant aluminum silicate insulation material to prevent heat loss
(5)Supporting world-class brand burners, environmental protection, low consumption and high efficiency
2. High security, fully automatic operation
(1) The PLC intelligent automatic operation control system,has interlocking protection functions such as overpressure, overtemperature, water shortage, fuel leak detection, flameout protection, electric leakage, and abnormal state of electrical equipment,etc.
(2) Equipped with the world's first-class brand fuel supply protection
system, including filters, leak detection devices, pressure regulators, solenoid valves, etc, to ensure the safety of fuel.
(3) Multiple safety protection devices, safety valves, water level sensor alarms, pressure controllers, pressure transmitters, pressure gauges, etc.
(4) Equipped with explosion-proof device, which can release the pressure instantly when it detonates in the furnace to ensure the safe operation.
3. Low operating cost
(1)Adopt mutiple patented technologies, the boiler body is 100% automatically welded, with high quality, long life and low maintenance rate.
(2)Adopt world-class brand auxiliary machine, high combustion efficiency, fuel saving and low operating cost.
4. Quick installation and save space
Boiler and auxiliary machine are assembled structure, with short installation time and small space occupation.
Tooling Equipment
Qualification
Sales service
1. Boiler quality guarantee: We have our own factory, we can guarantee the boiler production efficiency and quality!
2. Feedback on the production progress in real time. We will send you pictures and videos of the production of boilers and auxiliary machine parts so that you can better understand the production process.
3. Reliable Transportation: Yuji Boiler has been cooperating with experienced freight forwarding companies for many years to ensure that the products reach their destination safe and sound. We have an overseas installation team to provide installation, commissioning and regular door-to-door maintenance.
4. Strict and complete inspection system: We have complete X-ray inspection, water pressure inspection, leak test and other systems to ensure 100% throughput before product delivery.
1. Material re-inspection: Ensure materials meet standards
2. Pretreatment of materials: Surface derusting and non-destructive testing, plate calibration
3. Cutting process: CNC cutting machine for lofting and processing
1. Forming: The drum is integrally formed. Using corrugated furnace process
2. Welding: Automatic welding, beautiful appearance, low repair rate and high efficiency
3. Correction: The welded drum is rounded to ensure the roundness of the drum
1. Non-destructive testing: Non-destructive testing, mechanical performance testing
2. Hydrostatic test: Check its strength and tightness
3. Trial burning: Safety and Stability Tests
1. Paint: First remove rust, then apply antirust primer, and finally apply high temperature resistant metal paint
2. Packaging: Packaging with special equipment
3. Transportation: Ensure safe and fast transportation of boilers and auxiliary equipment
Please let us know your required steam capacity, working pressure or steam temperature, fuel type. Then our aftersales-engineer will send you the detailed and exact offer.
Usually our company have new stocks, we can manage the shipping within 5-10 days. But you please contact us salesman to confirm in advance.
Yes, our company will provide the drawings and operation manual. Also you can contact us for help, then our engineer can give you the technical supports online.
1. Structure of vertical boiler is compact, occupy a limited area.
2. Convenient on installation and removal.
3. Low cost and investment on capital construction. Steam exhausted fast and sufficient.
4. The combustion space of horizontal is big, fuel can be burned completed.
5. The thermal efficiency is higher than the vertical boiler.
6. Horizontal type: less thermal loss, stronger output, and higher steam quality.
Our boilers have one year warranty period or depending on your requirements.
1. We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.
1. Strength calculation report with applied materials information.
2. 100%NDT(non-destructive inspection) report of steel plate, tube and welding rod.
3. 100% X-ray inspection( (Longitudinal, transversal safety inspection)): ensure the quality of entire boiler.
4. Hydrostatic test: ensure the standard working pressure and safety.
5. Third-party inspection report:By Henan Boiler Inspection Institute.
6.Passed ISO:9001 ,ISO14001,OHASA18001 and CE certificate.
1. We have 20, 000 m² factory area, More than 200 employees. We can efficiently complete your delivery project.
2. Our boiler vessel export to more than 100+ countries, Well Received by Customers.
3. Our boiler vessel have passed the ISO 9001 system certification, EU CE and other international certifications, worthy of your trust.
4. Through the quotation consultation form you submitted, we will give you a quotation and construction solution in the shortest time.
