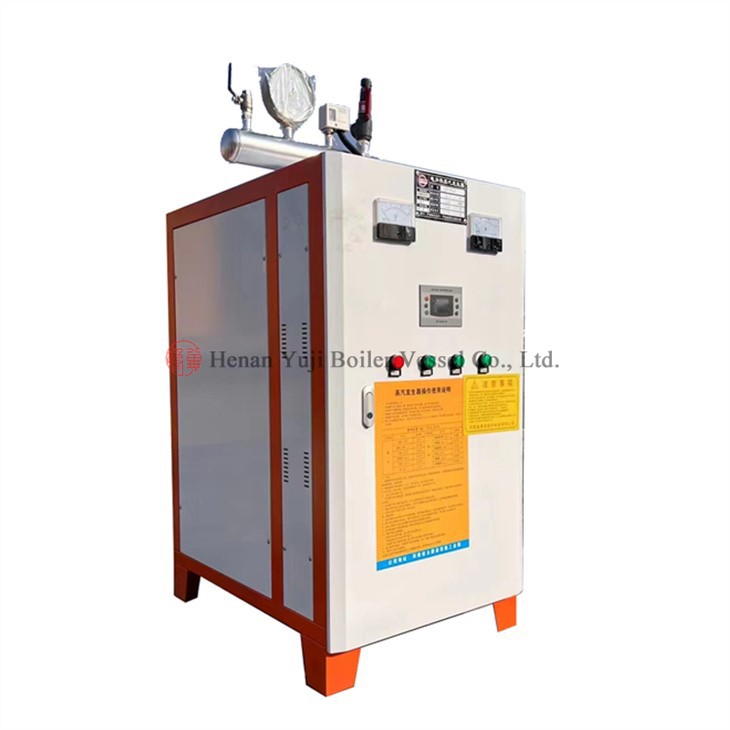

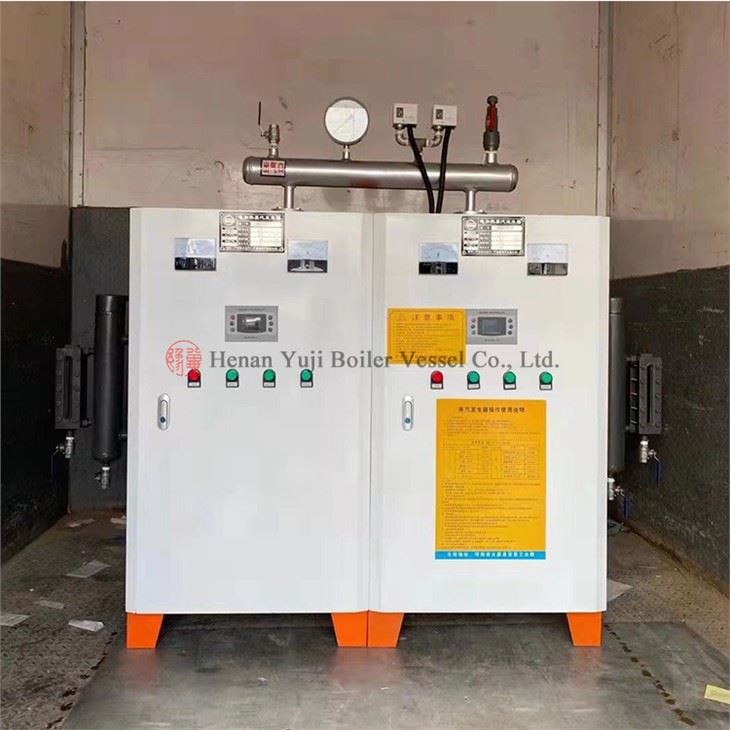

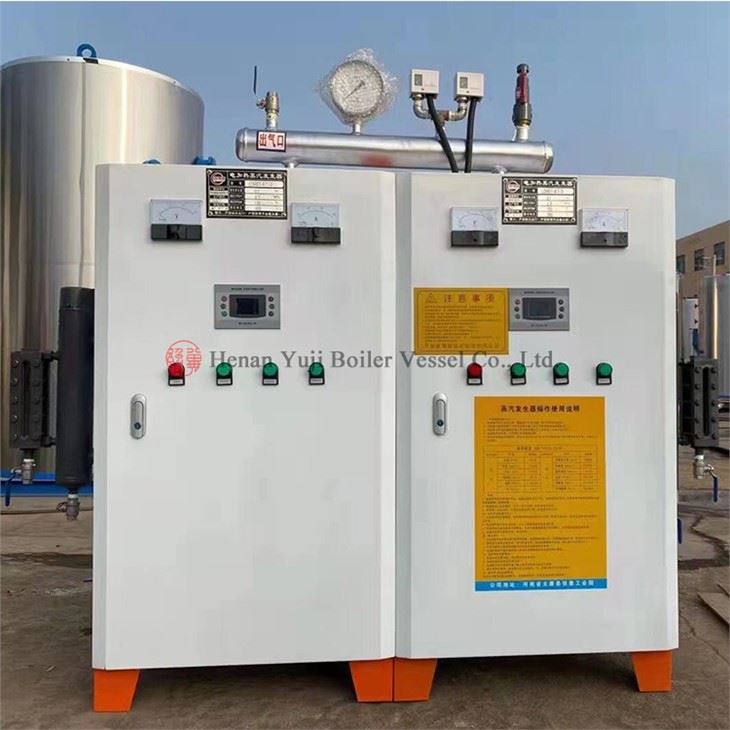

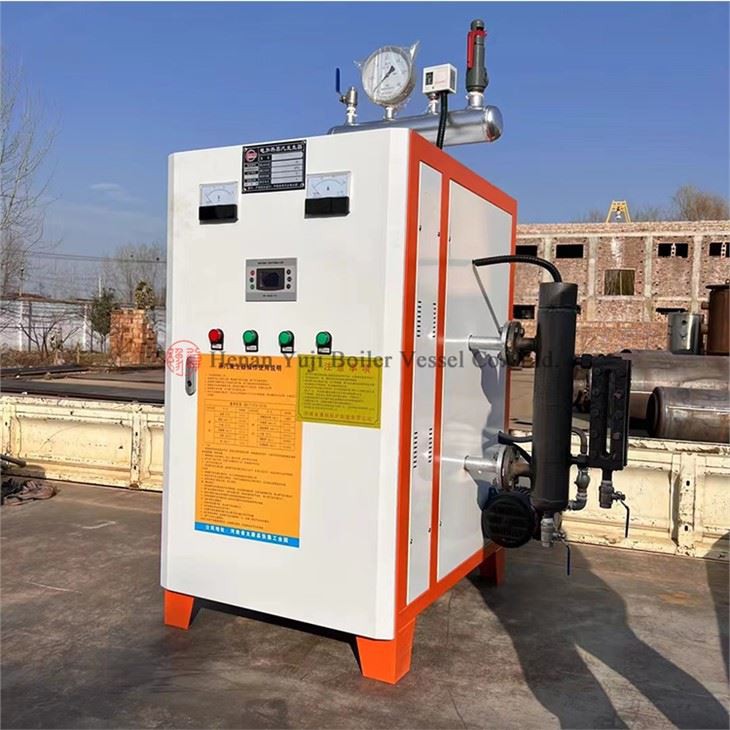

Small Quick Electric Steam Generator Boiler
Electric Heating Fast Steam Generator
Model: LDR (Electric Heating) Series
Steam Capacity: LDR (Electric Heating) 0.01-0.4T/H
Steam Pressure: 0.4/0.7Mpa (Optional according to demand)
Product Introduction
Product Description

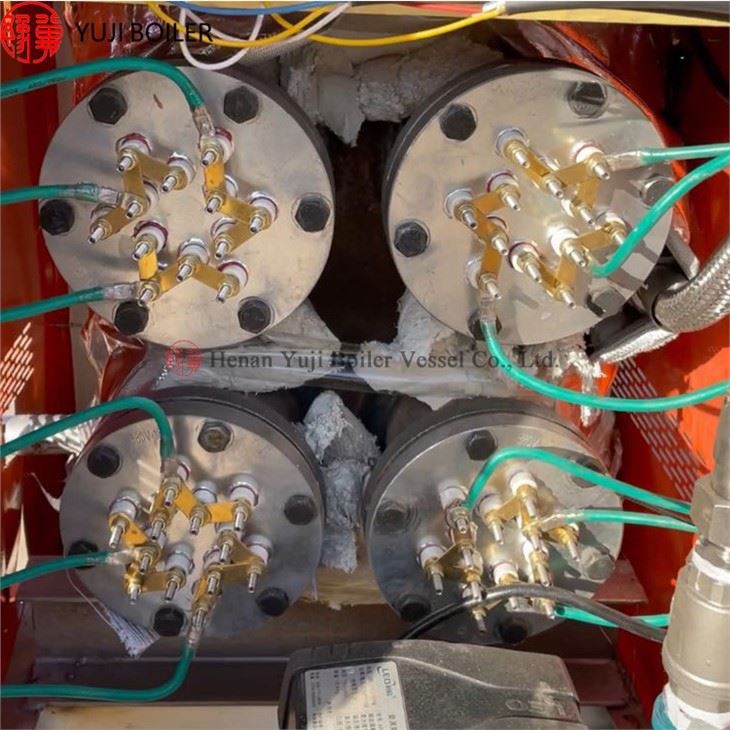

Small electric steam generator is run by power energy, no noise and no pollution. Use of high quality heating element, the surface heat load is much lower and the thermal efficiency is higher. This product adopts cabinet design style, elegant appearance, compact internal structure and its ideal for saving space.
Features
1. Quick steam generation
2. High thermal efficiency
3. High-end automatic control system
4. High security and high reliability
5. Exquisite structure

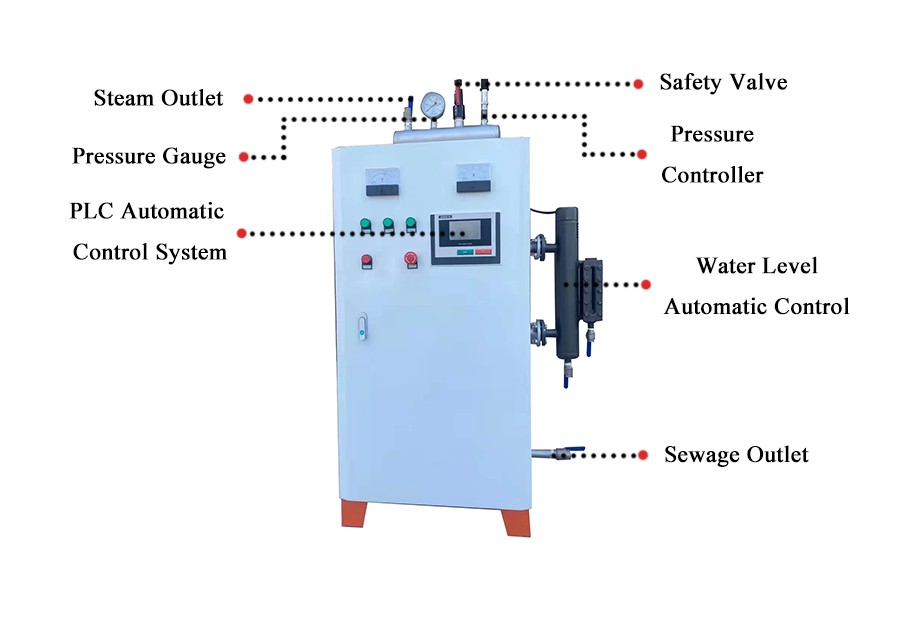

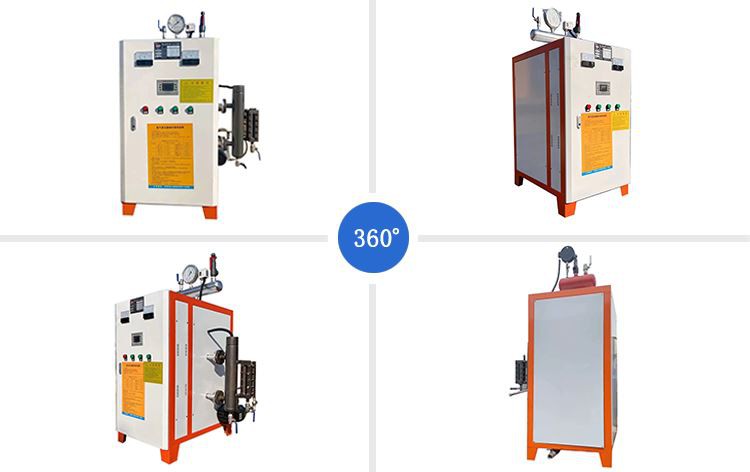

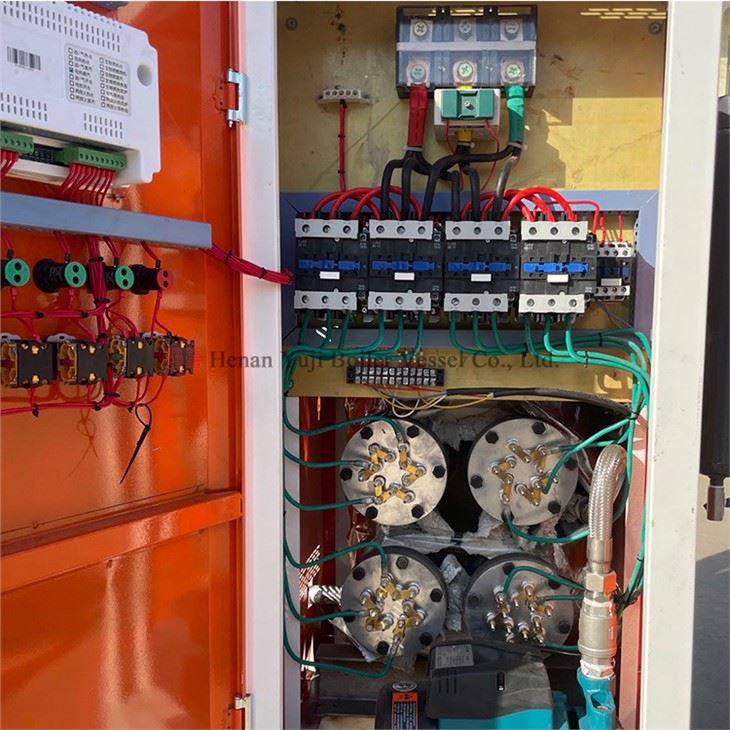

Product Details
Product Specification
Model | Rated evaporation Capacity (kg/h) | Rated steam pressure (Mpa) | Rated electric power (kw) | Thermal efficiency (％) | Steam temperature | Dimension (m) | Weight (kg) |
YJLDR0.05 | 50 | 0.4/0.7 | 36 | ≥99 | 151 | 0.82×0.84×1.4 | 146 |
YJLDR0.075 | 75 | 0.4/0.7 | 54 | ≥99 | 151 | 0.82×0.84×1.4 | 150 |
YJLDR0.1 | 100 | 0.4/0.7 | 72 | ≥99 | 151 | 0.82×0.84×1.68 | 155 |
YJLDR0.2 | 200 | 0.4/0.7 | 144 | ≥99 | 151 | 0.82×0.84×2.1 | 206 |
YJLDR0.3 | 300 | 0.4/0.7 | 216 | ≥99 | 151/170 | 0.82×0.84×1.9 | 302 |
Certificate and Qualification
Aftersale Service
1. We have professional boiler instructors and overseas engineering teams to provide boiler operator training, installation and maintenance services to solve problems in the boiler operation in a timely manner.
2. 24 months warranty period, if the boiler body or accessories are damaged during normal operation, we provide free maintenance services, and we only need to pay for the maintenance personnel.
3. A 24-hour service hotline providing professional billing services such as boat booking, product verification, merchant invoice, packing slip, insurance policy, and so on.
